Product Description:
Working principle of induction melting furnace is based on an electric and magnet induction principle. Electricity generates magnetism and magnetism in turn produces electricity. Resonance occurs between the induction ring and the capacity inside the power supply cabinet. This causes alternating current to be generated, which creates an alternating magnetic field. This causes the electrons inside the metal material to move in an alternating direction, creating an electron eddy. The electrons fiercely knock against each other, which produces heat and increase the temperature inside the furnace until it reaches the melting point of the metal.
Thyristor serial-connected resonant medium frequency induction melting furnace is provided with capacitor inside the power supply cabinet, and this capacitor is serially connected with the induction ring inside the furnace body.
Its quick speed thanks to thick raw material for furnace shell, reasonable match between induction ring and capacitor, intelligent type digital main control board, constant output and high efficiency power factor
Features:
Thyristor serial-connected electric furnace with our own patent (No.ZL 202222790179.8 is widely used in the casting industry due to its power saving and environmental advantages. It has a power factor over 95%, which is one of our equipment with lowest power consumptions . This type of equipment also saves 20% of power consumption compared to parallel-connected thyristor type. Additionally, it does not require special working environment as it can be applied under various environments with high safety performance.
The quality of thyristor serial-connected melting system is highly recognized by casting industry due to its low failure rate and malfunctions within five years. Furthermore, its maintenance is also convenient and simple. One of the most significant advantages of this type of equipment is its fast melting speed while consuming low power consumption.
Its mature technology is accepted by many users because it rejects power compensation device and harmonic elimination device, and its power factor can be over 95%.
Technical Parameters:

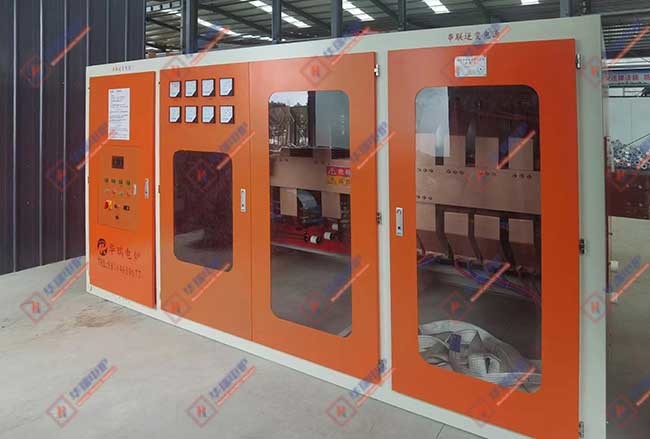

Induction melting furnace power supply, thyristor serial-connected inverter medium frequency power supply , one power supply cabinet drives two furnaces
| Type | DX-2000Kw |
| inlet power supply ( V) | 380V/ six phases |
| inlet current ( A) | 1630A |
| Direct current voltage (V) | 1000 |
| Direct current (A) | 2000 |
| medium frequency voltage (+-10%) V | 2400 |
| medium frequency (Hz) | 100-400Hz |
| medium frequency power (Kw) | 2000KW |
Applications:
In the casting industry, it is widely used to melt various metals such as copper, aluminum, iron, alloy and steel and othe metals.
Customization:
Huarui Induction Melting Furnace
Huarui Induction Melting Furnace is the great choice for metal melting process. It offers high reliability, safety, low maintenance and quick melting speed. Its model number ranges from 0.5tons to 20tons. All of our products passed the national testing report which shows their performance is higher than national standard as well as quality management system certificate. You can get a good benefit with Huarui induction melting furnace.
- Brand Name: Huarui
- Model Number: 0.5tons -20tons
- Place of Origin: China
- Certification: own patent; national testing report ; quality management system certificate
- Minimum Order Quantity: 1 sets
- Price: to be negotiated
- Packaging Details: water proof
- Delivery Time: 30~45 days
- Payment Terms: T/T/ L/ C
- Supply Ability: 1000000 sets/ year
- Maintenance: Low
- Safety: Complete
- Melting Speed: Quick
- Melting Time: Short
- Operation: Reliable; Easy
Support and Services:
Induction Melting Furnace technical support and services include:
- Providing product installation and commissioning services
- Providing comprehensive technical training
- Providing on-site maintenance services
- Providing remote technical support services
- Providing spare parts supply services
- Providing product technical consultation services
